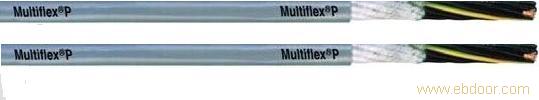

This cable is ideal for use on drag chains or as ontrol cable for continuously moved machine components in dry and damp environments.Designed to resist up to mean mechanical bending loads.
When used for outdoor applications,adequate protection against direct exposure to sunlight must be ensured and the specified temperature limits must be observed |
□ Stranded bare Cu conductor, extra-fine wire
□ Strand structure as per VDE 0295, class 6/ IEC60228 class 6
□ Coresinsulation: special PVC
□ Black cores with printed consecutive
White number coding
□ Green-yellow protective conductor
(3 cores and over)in the outer layer
□ Cores twisted in layers
With optimal lay lengths
□ Fabric lapping
□ Outer sheath :special PVC
Flam retardant
□ Sheath colour: RAL 7001 grey
|
|
Rated Voltage : |
|
Uo/U |
300/500V |
|
|
|
|
|
Bending radius: |
|
|
10 x cable diam |
|
|
|
|
Temperature range: |
|
moved |
-5°C to +70°C |
|
unmoved |
-30°C to +70°C |
Flame retardation to IEC60332-1
|
